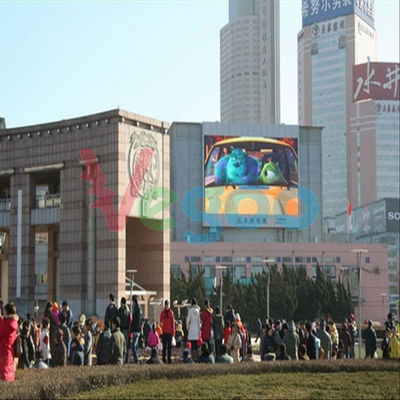

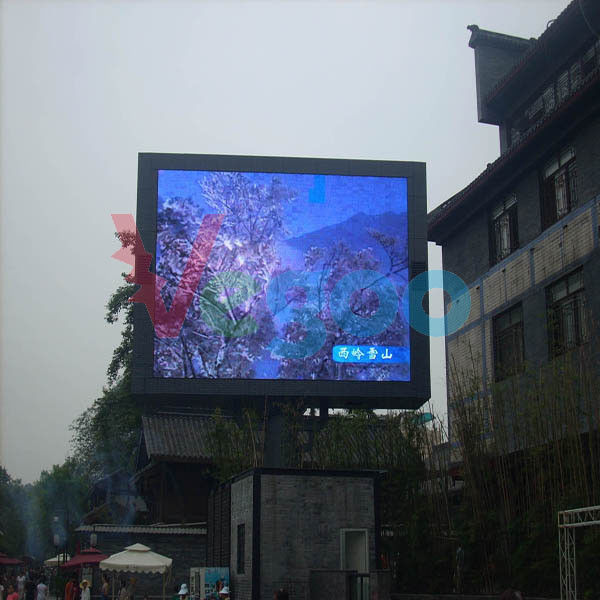

1R1G1B/DIP 346 P10 Outdoor Full color LED Display 7500cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Packaging Details: | Plywood case / Flight case / Carton box |
|---|---|
| Delivery Time: | 3-5 days |
| Supply Ability: | 3000Sq.m |
|
Detail Information |
|||
| Product Name: | P10 Outdoor Full Color LED Display | Pixel Pitch: | 10mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 346 | Density: | 10,000 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm | Module Resolution: | 32×16 |
| Cabinet Resolution: | 96×96 | Driving Method: | 1/ 4 Scan |
| Contrast: | 1000:1 | ||
| Highlight: | outdoor digital signage displays,outdoor full color led screen |
||
Product Description
Stable Performance:
Internal connection within cabinet is simple,HUB card and modules use copper-plated pin directly connected.As we all know,the fewer components used in electronic products,the lower failure rate.Compared to traditional cable connection,I-Magic work more stable and reliable.
Extremely High Accuracy
Use of aluminum structure for the cabinets,one-time die-casting,creating exquisite work,the flatness of the entire screen when assembing is very high,and the gap between cabinets is less than 0.3mm,can't be detected by naked eyes,outstanding display effect.
| Product Name | Specification | ||||||||||
| Pixel Pitch | 10mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| Density | 10,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm or 160mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 32×16 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/ 4 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 7500cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Module Weight | 0.5kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
