P3.91-7.8 Transparent Led Wall Window Showcase Slim Light Cabinet Unit Size 1000*500mm Weigh 10kg Sqm
Product Details:
| Place of Origin: | made in China |
| Brand Name: | vegoo |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | Transparent P3.9-7.8-1 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negitionable |
| Packaging Details: | flight case,plywood case,cartons |
| Delivery Time: | 10-25 days |
| Payment Terms: | T/T, L/C,, Western Union, D/P |
| Supply Ability: | 5000sq.m/month |
|
Detail Information |
|||
| Product: | Transparent LED Display | Tube Chip Color: | SMD Full Color |
|---|---|---|---|
| Usage: | Outdoor And Indoor | Pixel Pitch: | P3.9-7.8mm |
| Brightness: | 3500-5500cd | Cabinet Size: | 1000x500mm |
| Module Size: | 500x250mm | Application: | Doors And Windows |
| Application1: | Showcase | Advantage: | High Transmittance |
| Advantage2: | Slim And Light | Function: | Easy Control Easy Work |
| Transmittance: | 75% | GW/SQM: | 10kg/SQM |
| Highlight: | transparent led panel,transparent led video wall |
||
Product Description

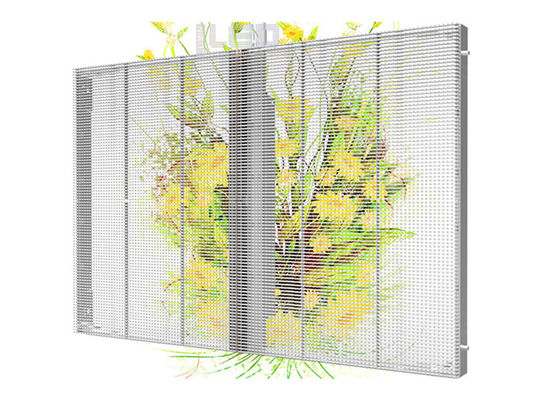

Transparent LED showcase P3.91-7.8 China factory slim-light flexible installation cabinet 500*1000mm

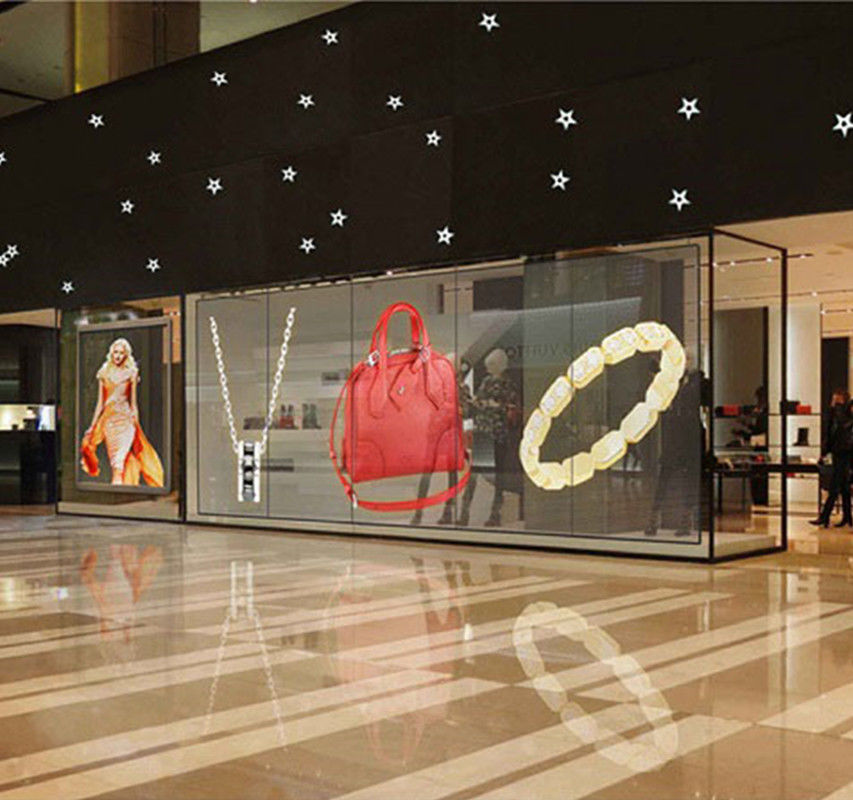

Application:
Retails
Shopping malls
Night view & lightings
Stage envents
Curtain wall series
Technical specifications:
|
P3.9 -7.8MM cabinet parameter |
|
| MODULE MODEL | GLS.GTR.039.1921 |
| MODULE SIZE(mm) | 500*250mm |
| RESOLUTION | 128*32 |
| INPUT VOLTAGE | DC5V |
| TRANSPARENCY RATE | 55% |
| MODULE POWER | 25W |
| CABINET SIZE(mm) | 1000*500*65mm |
| MAX COMSUMPTION | 400W/㎡ |
| Cabinet resolution | W256*H64 |
| Input voltage | AC220V/(110V)±15%,47～63Hz |
| Cabinet material | aluminum, PC, stamping parts |
| cabinet weight | 6KG |
| protection grade | IP42 |
| pixel pitch | H:3.9mm V:7.8mm |
| LED SPECICATION | OUTDOOR SMD1921 |
| PIXEL DENSITY | 32768 |
| SCAN MODE | 1/16 |
| REFRESH RATE | 2880HZ |
| brightness(CD/m²) | 3500-4500 |
| Working humidity | 10%～95%RH |
| working temperature | -20~50C° |
| working life | ≥30000H |
| signal transfer | Internet cable |
| control system |
|
