Indoor Flexible P2.5 mm LED Display Video Wall Customized Size Free Style Creative Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE ROHS FCC |
| Model Number: | Vg-P2.5 M- FLX |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sqm |
|---|---|
| Price: | Usd 800 per Sqm |
| Packaging Details: | Wooden Case Package 50 cm x 100 cm x 50 cm |
| Delivery Time: | 15-25 Days |
| Payment Terms: | T/T |
| Supply Ability: | 1500 Sqm per Month |
|
Detail Information |
|||
| Pixels: | 2.5mm | Usage: | Indoor,Advertising,Semi-outdoor,Trade Show |
|---|---|---|---|
| Screen Dimension: | Customized Size | Tube Chip Color: | Full Color,1R1G1B |
| Brightness: | 800cd/m2 | Warranty: | 2 Years |
| Life Span: | 100000hours | Refresh Rate: | 1920Hz |
| Pixel Density: | 160000 | Display Function: | Video,Animation,Image,Picture,Graphic |
| Highlight: | flexible led panel,flexible led display |
||
Product Description
About Us:
About us:
Shenzhen WeiGu Electronic Technology Co.,Ltd is
you buy from us not only LED display products but also our forever technical assistance !
To cooperatted with us , you
will save more money and more precious time.
Contact: Michael Nie
Tel /Whatsapp / Wechat : +86136 6260 3320
Email: michael@vegooled.com
Applications:

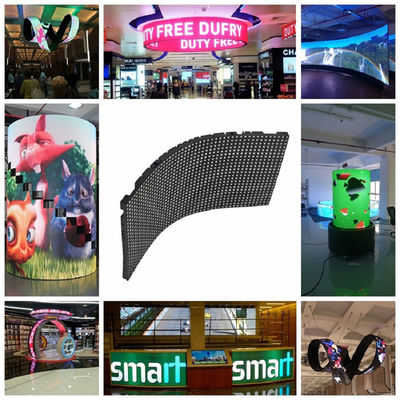

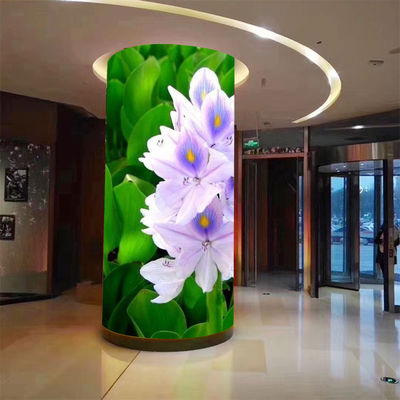

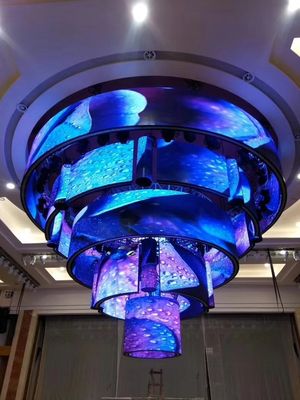

Our products widely used in various public places such as commercial plaze ,Museum , Entertainment Venue,Stations ,Airport ,Stadiums,Transport Facilities, Financial Institutions, Theater, Stage etc......
Applications:
Our products widely used in various public places such as commercial plaze , Stations ,Airport ,Stadiums,
Transport Facilities, Financial Institutions, Theater, Stage etc......
| P1.875 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 2.5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| 3 | Density | 160000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | customized | ||||||||||
| 6 | Module Resolution | 128 x 64 | ||||||||||
| 7 | Cabinet Resolution | costomized | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5153/ICN2153/FM6353 | ||||||||||
| 10 | Brightness | 600cd/㎡ | ||||||||||
| 11 | Contrast | 4000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜800W | ||||||||||
| 14 | Average power: ＜300W | |||||||||||
| 15 | Cabinet Weight | 6.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-240V /5V60Hz | ||||||||||
| 36 | Protection Level | IP 45 | ||||||||||
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
