Full Color IP65 Acrylic Stage Dance Floor Tile P4.81P3.91 LED Display Outdoor Video Screen With Radar System
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-SUN88817 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiation |
| Delivery Time: | 7-25working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Material: | Aluminum Or Iron,Acrylic | Waterproof: | IP65 |
|---|---|---|---|
| Color: | Full Color | Pixel Pitch: | 4.81 And 3.91 |
| Contrast: | 5000:1 | Refresh Rate: | >1920Hz |
| Highlight: | commercial advertising led display,high resolution led display |
||
Product Description
Acrylic Stage Dance Floor Tile P4.81 P3.91 LED Display Outdoor Video Advertising Screen With Radar System

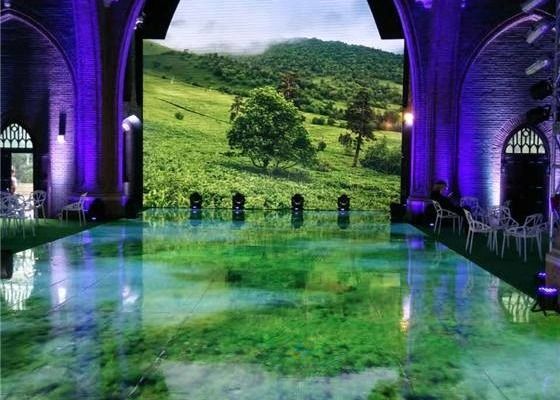

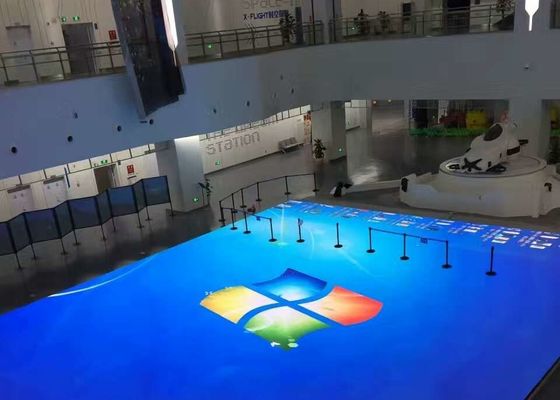

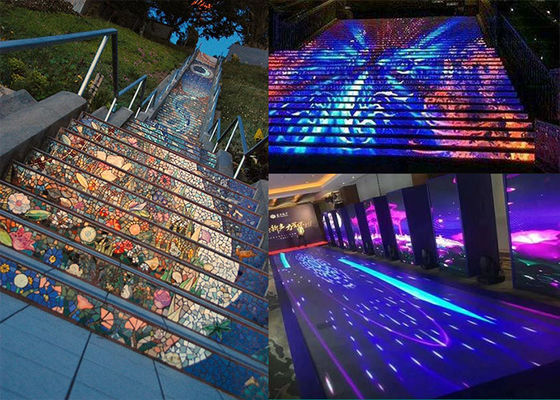

What is floor led display:
Like the floor can display video images and other information display screen
Generally used for stage, T, booth, bar, night show, broadcasting hall and other decoration.
Our Advantage:
1.Adopts interactive display technology,infrared ray perception of human movement and accurate capture in the tile LED display screen moving objects change,stage effect graphics make it as immersive.
2.Fast installation Locks, Quick-installed module design, and excellent performance protection structure, which can realize seamless connection and random combination.
3.Using high strength wear - resistant non - slip acrylic, can be directly trample,high bearing capacity.
4.Imaging range increases according to different scenes and requirements, and it also has radar sensing technology
P4.81 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4.81mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1921 | ||||||||||
| Density | 43,243 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| Module Resolution | 52×52 | ||||||||||
| Cabinet Resolution | 104×104 | ||||||||||
| Driving Method | 1/13 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 4500cd/㎡ | ||||||||||
| Contrast | 5000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜560W | ||||||||||
| Average power: ＜280W | |||||||||||
| Cabinet Weight | 11.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Excellent low brightness and high ash effect, showing the uniformity of gray uniformity and good consistency.
Different from other LED display to play the text and video images, people can dance on the dance floor led panel, with music and video, people can get better audiovisual enjoyment
Above 16bit grayscale processing, brightness up to 3500cd/m2
Different from other LED display to play the text and video images, people can dance on the dance floor led panel, with music and video, people can get better audiovisual enjoyment
IP65 waterproof protection level, unique spot atomization treatment, completely eliminate the phenomenon of mole lines
The heat of each working IC and leds can be released effectively and evenly
Separated LED floor tiles and tracks;tracks can be connected by screw bolts,LED floor tiles can be paved on tracks naturally and fixed by positioning pin
Our Service:
We will reply your question within 24hours.
Free maintainence within warranty period,only charge material cost if beyond the warranty period.
