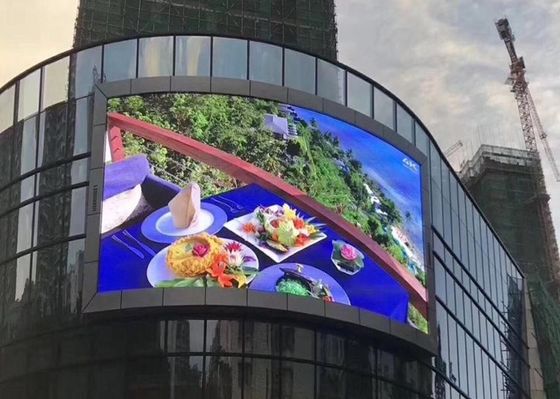

Digital P4 8000nits Outdoor Advertising LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | P4-DH |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | $720/sqm |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | 4mm | Moduel Size(L×W)mm: | 256mm×128mm |
|---|---|---|---|
| Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm | Brightness: | 5000cd/㎡ |
| Refresh Rate: | >1920Hz | Horizontal Viewing Angle: | 140º |
| Highlight: | 8000nits outdoor led billboard,P4 outdoor led tv advertising |
||
Product Description
1. LED screen can play videos, images and text messages online or offline in 24*7 time .
2. High-definition display, high contrast, 16.7M Color, vivid image display .
3.4000-8000nits high brightness, sunlight readable screen, to expand various advertising information.
4. IP65 Shell design to meet various outdoor environmental requirements.
5. It can be spliced in any horizontal and vertical direction to form any sizes of display.
6. The weight of LED module is light so as to install and disassemble easily , and it can be maintained at a single module and single lamp, reducing the cost of usage and maintenance.
P4 Outdoor Full Color LED Display Specification
| Product Name | Waterproof P4 Outdoor Full Color LED Display Screen For Advertising | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1921 | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 5000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜1100W | ||||||||||
| Average power: ＜760W | |||||||||||
| Module Weight | 0.208kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Q1: Why choose us:
A1.1: Company Info: Vegoo has been in LED industry for 12 years, focusing on the led display, and have completed more than 5000 projects home and aboard, thus we are fully experienced to provide led display solutions. Vegoo are focusing and professional!
A1.2: R&D Team: Vegoo has the R&D team with more than 8 years' experience, and launch new products according to the customers' needs every year or even each quarter.
A1.3: Products: there are indoor and outdoor fixed led display screen, indoor and outdoor rental led display, creative led display such as flexible led display, led donut and led triangle. They are widely used for shopping mall, stage, events, conference room, church etc. Meeting the demands of message display and delivery.
A1.4: Manufacturing: Vegoo has strict QC control and manufacturing management process, which enable our products high quality and stable working performance.
A1.5: Service: Vegoo has have specialized technicians before and after sales. And strong marketing team to offer you the solutions 7/24 anytime.
Q2: What’s your payment term? How long it takes to delivery?
A2: T/T and L/C, 30% deposit in advance, and balance 70% before shipment.
Q3: What is the control system?
A3: We use Nova and Linsn control system.
Q4: How can you ensure your led display product quality?
A4: Vegoo has been enrolled in led display industry for 12 years, and professional R&D team and skilled QC team with standard process to assure quality products.
