P6 P8 P10 Rental RGB SMD3535 Outdoor Full Color LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-P6-DH |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | $605 |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm | Moduel Size(L×W)mm: | 192mm×192mm |
|---|---|---|---|
| Cabinet Size(L×W×H)mm: | 576mm×576mm×90mm | Module Resolution: | 32×32 |
| Warranty: | 2 Years | Life Span: | 100000hours |
| Highlight: | SMD3535 p10 led board,Rental led p10 outdoor |
||
Product Description
Waterproof IP65 P6 p8 p10 Outdoor rental Advertising Screens LED Display SMD3535 RGB full color led display panel module
Vegoo Outdoor Full Color LED Screen Futures:
◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels for heat dissipation.
◆High protection grade of IP65 achieved by patented mask design with waterproof and dustproof fuction.
◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.
| P6 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 27,777 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| 6 | Module Resolution | 32×32 | ||||||||||
| 7 | Cabinet Resolution | 96×96 | ||||||||||
| 8 | Driving Method | 1/8 Scan | ||||||||||
| 9 | Driving IC | FM6124 | ||||||||||
| 10 | Brightness | 6500cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜810W | ||||||||||
| 14 | Average power: ＜405W | |||||||||||
| 15 | Cabinet Weight | 8.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Q1: What's the pixel pitch for Outdoor LED Display Screen ?
A1: Indoor&Outdoor (6mm / 8 mm/ 10mm/12mm/16mm )
Q2: Where is it used for?
A2:

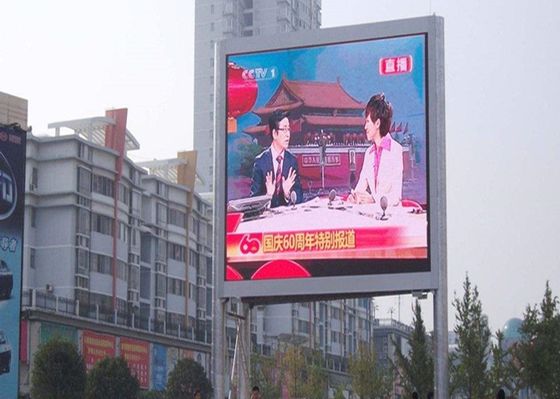

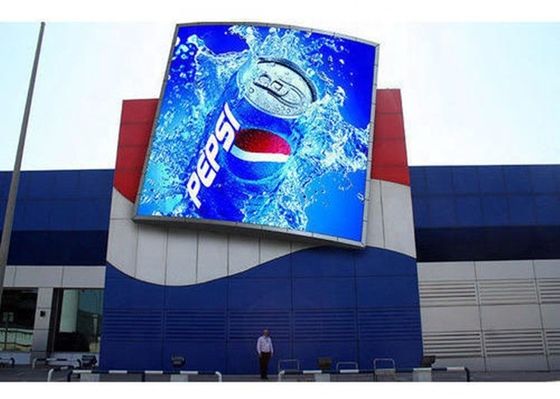

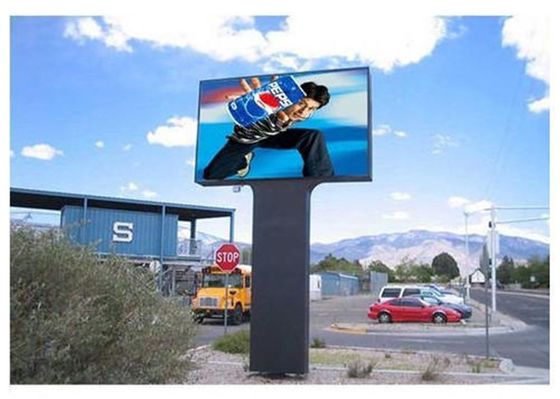

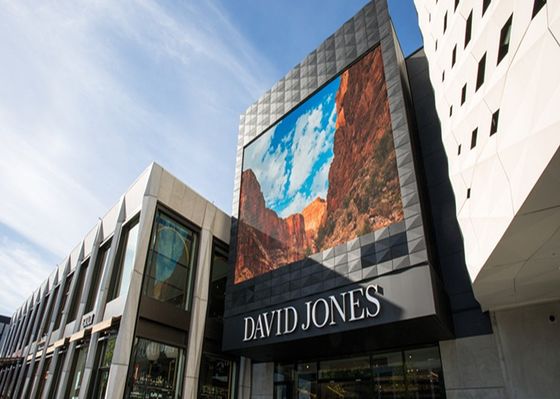

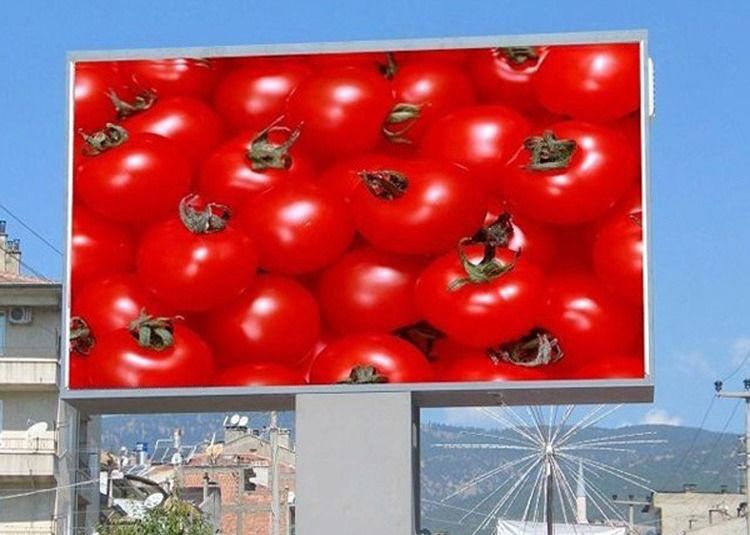

•Outdoor advertising, digital billboards, advertising in big companies
•Sports halls, fields, playgrounds.
•Airports, bus stations and railway passenger terminals.
•Facades of shopping malls, department stores, banks and car dealerships.
•Architecture and social projects, information systems in cities.
•-Show-business, concerts, festivals, motor shows and other public events.
environment.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar or Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
