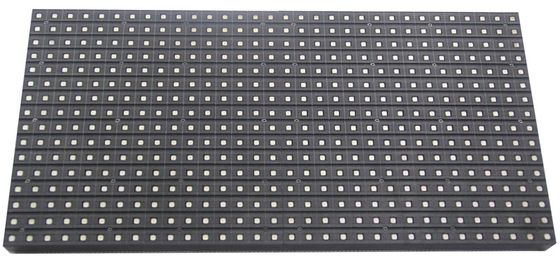

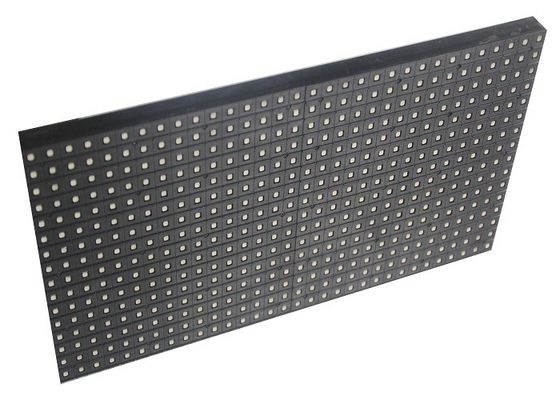

Full Color Waterproof Ip65 P10 320mmx160mm SMD LED Module
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE FCC ROHS |
| Model Number: | VG-P10MMM |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pc |
|---|---|
| Price: | Usd7-10 /Pc |
| Packaging Details: | 36 cm x 65 cm x 36 cm |
| Delivery Time: | 7-15days |
| Payment Terms: | T/T |
| Supply Ability: | 30000 Pcs Per Month |
|
Detail Information |
|||
| Module Size: | 320 Mm X 160 Mm | Resolution: | 32 X 16 |
|---|---|---|---|
| Brightness: | >5500 Cd | Led Chip: | Smd 3535 |
| Refresh Rate: | >1920 | Viewing Angle(°): | H 120 V 120 |
| Operating Temperature(℃): | -40 - +60, | Pixel Pitch: | 10 Mm |
| Warranty: | 1-3 Years | Application: | Outdoor Led Display |
| Highlight: | 320mmx160mm led smd module,P10 led rgb module,Ip65 led rgb module |
||
Product Description
About us:
Shenzhen WeiGu Electronic Technology Co.,Ltd is specially engaged in research, production and marketing of LED display, full-color LED display and LED display project solutions and their parts. We provide out customers with service equipment and training etc, you buy from us not only LED display products but also our forever technical assistance !
Applications:

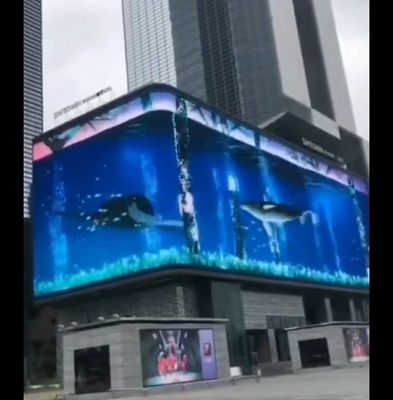

Our products widely used in various public places such as commercial plaze ,Museum , Entertainment Venue,Stations ,Airport ,Stadiums,Transport Facilities, Financial Institutions, Theater, Stage etc......
| Product Name | Specification | ||||||||||
| Pixel Pitch | 10mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| Density | 10,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm or 160mm×160mm | ||||||||||
| Module Resolution | 32×16 | ||||||||||
| Driving Method | 1/ 4 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 5500cd/㎡ | ||||||||||
| Contrast | 8000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power: ＜625W | ||||||||||
| Average power: ＜300W | |||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
