Indoor Creative 4mm 256mmx128mm Flexible LED Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE FCC ROHS |
| Model Number: | VG-P4-MFLX 8 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD 30 PER PC |
| Packaging Details: | customized |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1500 Sqm per month |
|
Detail Information |
|||
| Pixels: | 4mm | Display Function: | Video,Animation,Image,Picture,Graphic |
|---|---|---|---|
| Usage: | Indoor,Advertising,Semi-outdoor,Trade Show | Screen Dimension: | Customized Size |
| Tube Chip Color: | Full Color,1R1G1B | Brightness: | 1200cd/sqm |
| Warranty: | 3 Year | Module Size: | 256*128 Mm |
| Life Span: | 100000hours | Product Name: | Indoor Full Color Flexible Led Screen |
| Refresh Rate: | 1920Hz | Pixel Density: | 62500 Pixel/㎡ |
| Highlight: | 4mm flexible led curtain screen,256mmx128mm led flex screen |
||
Product Description

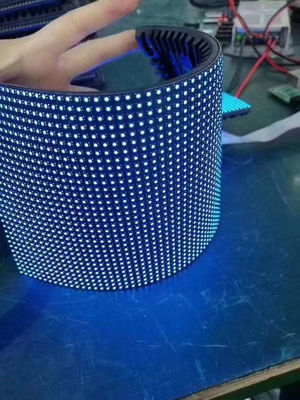

Indoor Led display Flexible Led Display Creative Led Screen Flexible Module size 256 mm x 128 mm
About us:
Shenzhen WeiGu Electronic Technology Co.,Ltd is specially engaged in research, production and marketing of LED display, #full-color #LED display and LED display project solutions and their parts. We provide customers with service equipment and training etc, you buy from us not only LED display products but also our forever technical assistance !
Applications:

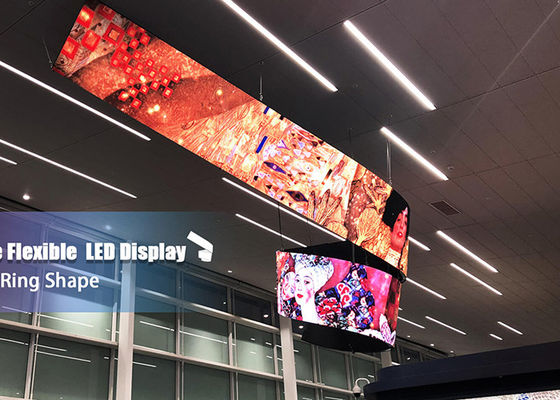

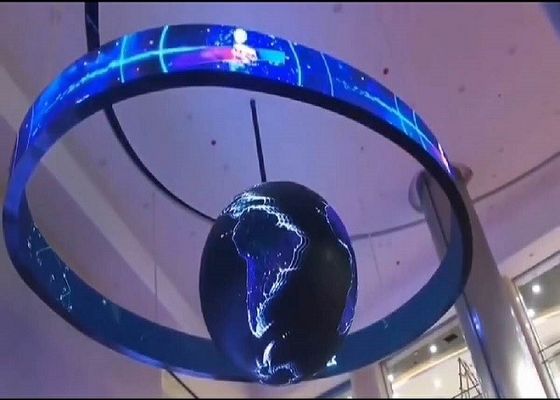

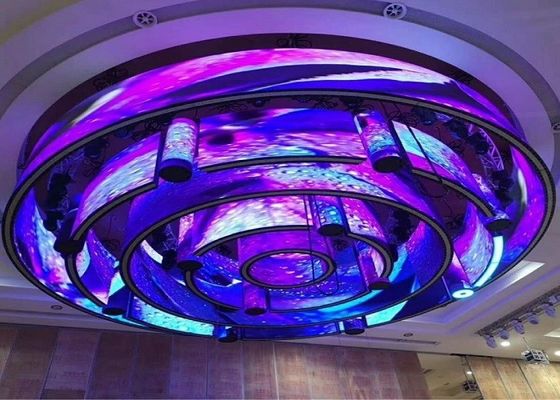

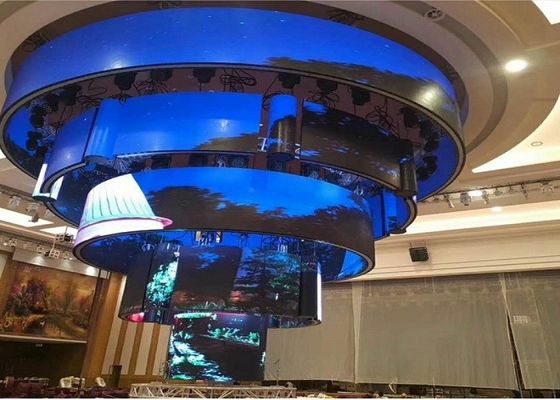

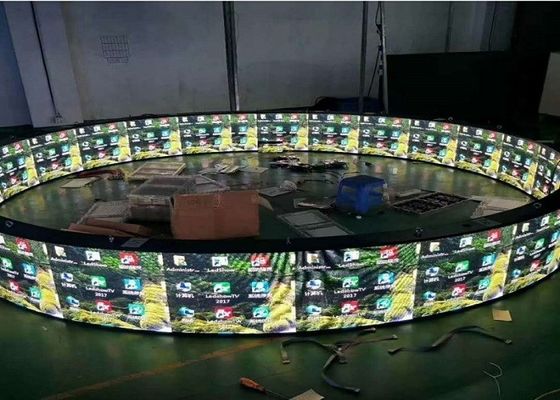

Our products widely used in various public places such as #commercial plaza ,#Museum , Entertainment Venue,Stations ,Airport ,#Stadiums,Transport Facilities, Financial Institutions, Theater, Stage etc......
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or FM6124 | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜410W | ||||||||||
| Average power: ＜200W | |||||||||||
| Cabinet Weight | 13kg/20kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V/5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
