Outdoor Rental LED Display P3.6 High Refresh Rate High Brightness 576x576mm Cabinet For Stage
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE,FCC,RoHS |
| Model Number: | VG-P3.6-outdoor |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | 500-850USD/sqm |
| Packaging Details: | 4 in one flight case, 5 in one flight case,carton boxes (custom packaging) |
| Delivery Time: | 7-25 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 Sqm/month |
|
Detail Information |
|||
| Application: | Indoor And Outdoor | Brightness: | 6000cd/sqm |
|---|---|---|---|
| Package: | Flight Case | Grey Level: | 16 Bit |
| Controlling System: | Nova | Mtbf: | 10000H |
| Gray Scale: | 16bit | Cabinet Size: | 576x576mm |
| LED Module: | 288x288mm | IC: | MTC1921，FM6373 ICN2153 |
| Highlight: | High Refresh Rate Rental LED Display,Outdoor Rental LED Display,High Brightness Rental LED Display |
||
Product Description
Outdoor Rental LED Display P3.6 High Refresh Rate High Brightness 576x576mm Cabinet For Stage
Specifications
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R1G1B/SMD1921 Black lamp |
| Pixel Density | 65,536 pixel/m2 |
| Moduel Size(L×W) | 250mm×250mm |
| Cabinet Size(L×W×H) | 500mm×1000mm×33mm |
| Module Resolution | 64×64 |
| Cabinet Resolution | 128×256 |
| Driving Method | 1/16 Scan |
| Driving IC | MBI5124 |
| Brightness | 4500cd/㎡ |
| Contrast | 5000:1 |
| Brightness Adjustment | Auto and Manual |
| Power Consumption | Max Power:＜800W/㎡, Average power: ＜400W/㎡ |
| Cabinet Weight | 4kg |
| Color Temperature | 2000K-9500K |
| Viewing Angle | 140º / 120º |
| Signal Processing | 16bit |
| Frame Frequency | 60Hz |
| Refresh Rate | >1920Hz |
| Control Mode | Synchronous/Asynchronous |
| MTBF | >50000 hours |
| Lifespan | 100,000 Hours |
| Operating Temperature | Working : -20 ~ 65 ℃, storage : -40 ~ 85 ℃ |
| Environment Temperature | -30℃ ~ 60℃ |
| Power Supply | 110-220VAC/5VDC |
| Protection Level |
IP65 (Customzied design) |

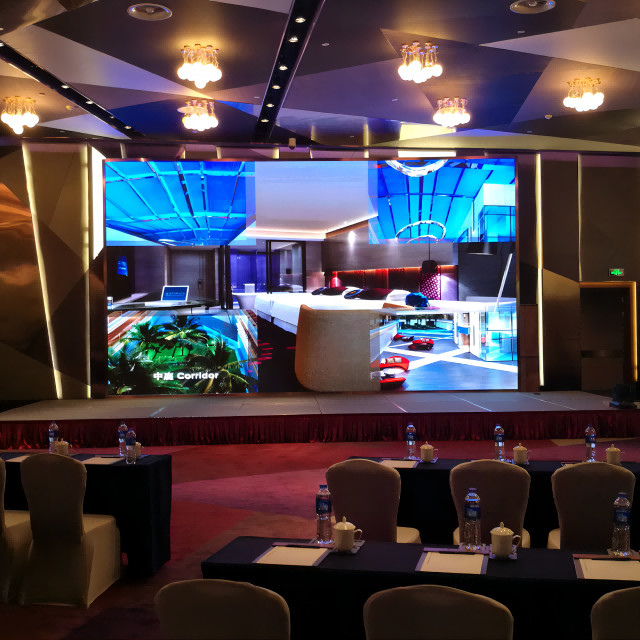

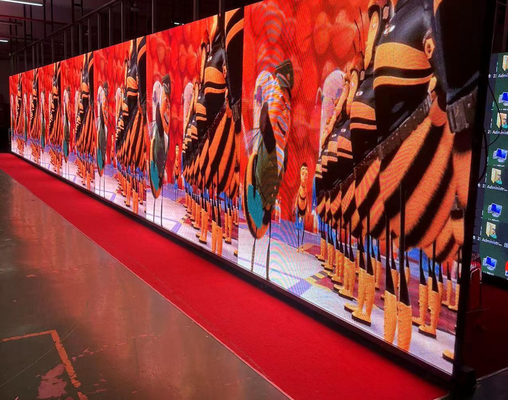

Case
