480mm*480mm Cabinet Outdoor Fixed LED Screen P2.5 SMD1415 Waterproof For Advertising Board
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P2.5-32scan |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T |
| Supply Ability: | 8000sqm per month |
|
Detail Information |
|||
| Power Consumption: | Average: 260W/m², Max: 900W/m² | Led Type: | SMD1415 |
|---|---|---|---|
| Module Size: | 160mm*160mm | Led Cabinet Material: | Aluminum |
| Cabinet Size: | 480mm*480mm | Led Chip: | SMD1415 |
| Warranty: | 2 Years | Color Depth: | Rgb, Rgb |
| Weight: | 452g±10g | ||
| Highlight: | P2.5 Outdoor Fixed LED Screen,Waterproof Outdoor Fixed LED Screen,480mm*480mm Outdoor Fixed LED Screen |
||
Product Description
Features:
- With HUB between modules and receiving card,more stable
- High Brightness
- Safety:Die-Casting Aluminum design:High fire protection rate,Can get the TUV of 5VB fire protection certification;
- Special waterproof design,up to IP65;
- With high precision mask design,no block color difference.
- Full-Aluminum design,with special grain design,good heat-dssipation;
- Partial voltage design,lower heat-emitting,longer lifetime;
- High Refresh Rate,3840Hz
- Full front & rear maintenance design,easy install and save installation space.
- Lightweight design,30kg/m2 thickness is only 77mm
Technical Parameter
|
Unit Module |
Item | Parameter | |
| Model Number | VG-P2.5-32scan | ||
| Module Size | 160mm*160mm | ||
| Physical Pitch | 2.5mm | ||
| Physical Density | 160000 dots/m2 | ||
| Pixel Configuration | 1R1G1B | ||
| LED Package Mode | SMD 3IN1 -1415 | ||
| Module Resolution | 64dots(W)*64dots(H) | ||
| Max Power Consumption | 28W | ||
| Module Thickness | 15.5mm | ||
| Module Weight | 260g | ||
| Drive Type | Constant Drive | ||
| Scan Mode | 1/32 扫描 1/32 Scan | ||
| Port Type | HUB75 | ||
| Match Cabinet Size | W480mm*H480mm | ||
| (DC) Working Voltage | DC 5V | ||
| Protective Measures | Three Proofing Pain | ||
|
Display Parameters |
Best Viewing Angle | H:120°;V:120° | ||
| Recommended Viewing Distance | 2.5m-50m | |||
| Driver IC | ICND2163 | |||
| Refresh Rate | 3840Hz | |||
| Brightness Of White Balance | 6000cd/m2 | |||
| Input Voltage | 110-220V;AC±10% | |||
| Operating Temperature/Humidity | -20℃~+45℃ | |||
| Average Power Consumption | 260w/㎡ | |||
| Max. Power Consumption | 900w/㎡ | |||
| Life Time | >100000 hours | |||
| Bad Light Rate | <0.0001 | |||
| MTBF | >5000 hours | |||
FAQ
1.Q:What is pixel pitch?
A:Since you can see many square LEDs on the screen ,each of them is an (LED)pixel - in printing house, it is a dot in dpi.The distance between two LEDs is called the pixel pitch,officially put.But shortly,it is the pixel that people quote using mm to measure it.
2.Q:What is a cabinet?
A:When we say panel or enclosure made of die-casting aluminium in most cases, or iron material in other cases, it shares the same meaning here with cabinet, which has several LED modules on it to make a complete display unit and will be piled up and fixed on the support structure. There are many sizes of such cabinets, like
500mm*1000mm, 576mm*576mm, 600mm*337.5mm, 640mm*480mm, 768mm*768mm, 960mm*960mm, which are commonly used
3.Q:What is a module?
A:A module is the minimal unit to consist of a cabinet(see Q2).Often,available are 320mm(W)*160mm/320mm(H),192mm*192mm,256mm*128mm/256mm,250mm*250mm,288mm*288mm,150mm*150mm/168.75mm/200mm,etc.
4.Q:What kind of technical support if offered?
A:Online support and training throughout the whole project and aftersale service are free. On-site assistance will require expenditure paid by the client-side, which includes round-way tickets, daily wage by local policies, accommodation and meal expenses, replacement and/or repair costs, and other unexpected costs if any that are required.

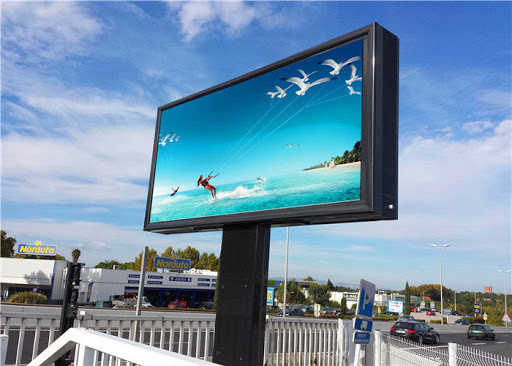

Case Images

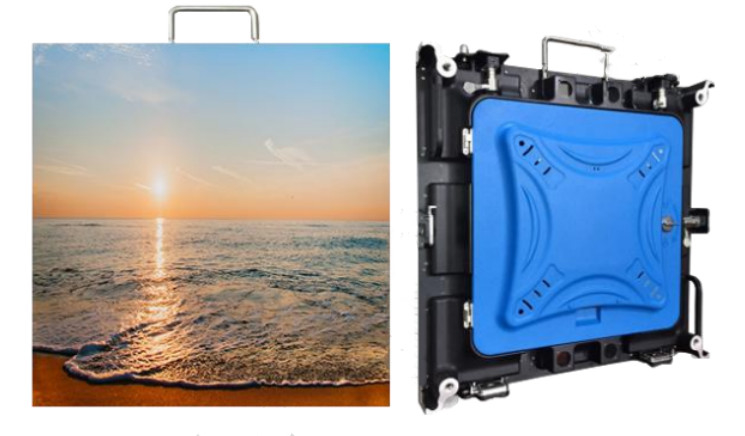

Detail Images
