Advertising Pixel Pitch 3.91mm Transparent LED Display Screen for Glass Walls
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P3.91-8scan |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 15-25days |
| Payment Terms: | T/T |
| Supply Ability: | 8000sqm per month |
|
Detail Information |
|||
| Pixel: | 3.91mm | Best Viewing Distance: | 5~100m |
|---|---|---|---|
| Warranty: | 2 Years | Transparent Rate: | 65％ |
| Life Span: | 100000 Hours | Warranty Time: | ２ Years |
| Brightness: | 50000 | Screen Dimension: | Customized |
| Led Lamp: | Nationstar Lamp 1921 | ||
| Highlight: | Pitch 3.91mm Transparent LED Screen,Transparent LED Display Screen,Glass Walls Transparent LED Screen |
||
Product Description
Product Description:

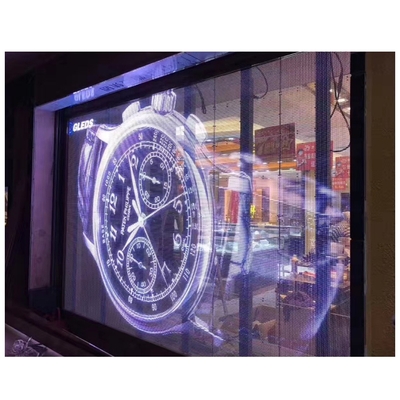

Transparent LED Display is an innovation of strip screen,and improvements on SMD manufacturing process, packaging and control system.With hollow structure design, eliminated components that blocking sight, the advertisement picture can be suspended on the glass curtain wall, shows good advertisement effect and artistic effect.
Features:
- High Transparency:With high transparency rate of 65%-80%. ensure the lighting requirements and angle between floors,glass windows, facade lighting structure
- Slim and Light:The power line inside the cabinets, the screen thickness is only 50mm, and the appearance is simple and elegant. Structure is only 10kg/m, cabinet is only 13kg/m
- Wide Application:As long as there is a glass curtain wall, this product can be applied. Such as banks shopping malls, theaters, commercial streets, chain stores, hotels, municipal public bulidings, landmarks, etc.
- Customized Design:According to the site environment to do any shape, plane and arc, regular and irregular shape can be produced, can meet the personalized needs of different places.
- Save Energy:No need traditional air conditioning cooling system, saving more than 35% energy than ordinary LED display
Product Parmeters
| NO. | Parameter | PH3.9-Normal brightness | PH3.9-Normal brightness | PH3.9-High brightness | PH3.9-High brightness |
| 1 | Pixel Pitch | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm | 3.91-7.81mm |
| 2 | Cabinet Size | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 | 1000*500/1000*1000 |
| 3 | Density | 32768 | 32768 | 32768 | 32768 |
| 4 | Packing style | 1R1G1B SMD direct-lit nationstar lamp 2020 | 1R1G1B SMD direct-lit nationstar lamp 1921 | 1R1G1B SMD direct-lit nationstar lamp 1921 | 1R1G1B SMD direct-lit nationstar lamp 1921 |
| 5 | Best view distance | 5~100 | 5~100 | 5~100 | 5~100 |
| 6 | Transparent rate | 65% | 65% | 65% | 65% |
| 7 | View ankle |
Horizontal 120~120°, Vertical 120~120° |
Horizontal 120~120°, Vertical 120~120° |
Horizontal 120~120°, Vertical 120~120° |
Horizontal 120~120°, Vertical 120~120° |
| 8 | Environment temperature |
storage-40℃~+80℃ working-20℃~+50℃ |
storage-40℃~+80℃ working-20℃~+50℃ |
storage-40℃~+80℃ working-20℃~+50℃ |
storage-40℃~+80℃ working-20℃~+50℃ |
| 9 | Thickness | 80 | 80 | 80 | 80 |
| 10 | Avg.power consumption | 100~150 | 150~200 | 100~150 | 150~200 |
| 11 | Max.power consumption | ≤400 | ≤600 | ≤800 | ≤800 |
| 12 | Driving method | 1/16 | 1/16 | 1/8 | 1/8 |
| 13 | Refresh rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| 14 | Brightness | ≥800 | ≥1500 | ≥4000 | ≥5500 |
| 15 | Installation | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount | pendant mount or stack mount |
Detail Image
