High-Brightness Transparent LED Screen Pixel 10 for Pure Outdoor Display with Flexibility Permeability 90%
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHC FCC |
| Model Number: | VG-P10-Transparent |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square meter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box or Flight case |
| Delivery Time: | 20-25days |
| Payment Terms: | T/T |
| Supply Ability: | 50pcs per month |
|
Detail Information |
|||
| Pixel: | 10000points/m2 | Permeability: | ≥90% |
|---|---|---|---|
| Weight: | ≤3kg/m2 | Refresh Frequency: | ≥3840Hz |
| Grayscale Level: | 16bit | Brightness Control Level: | Grade 0-255 |
| Frame Change Frequency: | ≥60Hz | ||
| Highlight: | High Brightness Transparent LED Screen,Outdoor Transparent LED Screen,90% Permeability Transparent LED Screen |
||
Product Description
Key Specifications/Special Features:
Products Description

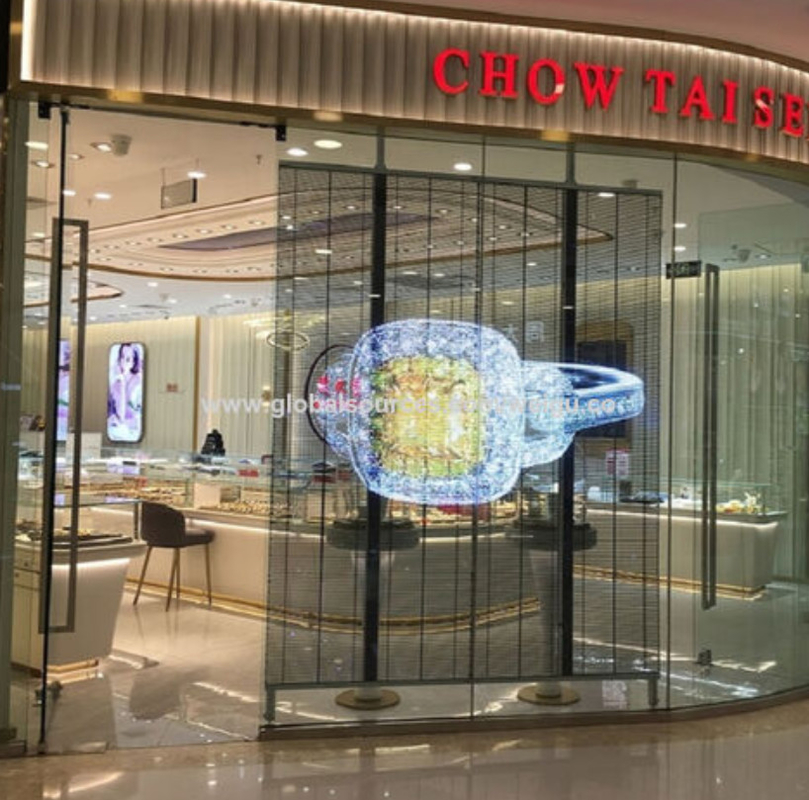

Transparent led film screen P10 bank,glass windows, show center is a high-quality product. LED film screens are used in glass curtain walls of buildings, city landmark buildings, glass windows of shops along the street, banks, real estate, car 4S stores, subway entrances,etc.
Features:
- The thickness is only 3mm.
- It has a certain degree of flexibility and can be cut.
How to choose a suitable LED film screen?(Let Vegoo brand tell you)
1.Lamp bead selection
Be sure to choose a regular LED film screen manufacturer like Vegoo and use well-know band lamp beads.
2.Brightness selection
If it is a purely indoor installation, it is recommended to choose a low-brightness film screen product. The cost of low brightness if relativly low,which can save costs; for indoor installation facing outward display, medium-brightness film screen products are generally selected, and the price will also be relatively moderate; if it is a pure outdoor display, a high-brightness film screen product must be selected.
3.Viewing angle
The viewing angle of the LED film screen is 160°. The large viewing angle ensures a larger viewing range and more audiences. The viewing effect is consistent within the range and there will be no color cast. If the viewing angle is too small, the visual experience will also be worse.
4.Transparency
The LED film screen is composed of strips of light strips.Its transparency is naturally not fully transparent. Generally, the transparency is in the range of 60%-95%
5.Power consumption
The film screen is an energy-saving and environmentally friendly product with low power consumption and average power consumption.It does not require traditional refrigeration systems and air conditioning for heat dissipation.
We believe that transparent led film screen P10 offers an unbeatable combination of quality, performance, and value. If you have any questions about this product or would like to learn more about how it can benefit your business, please don't hesitate to contact us. We are dedicated to providing excellent customer service and helping our customers achieve their business goals.
Thank you for considering Transparent led film screen P10. We look forward to the opportuniy to work with you and help you achieve success.
Product Parameters
|
Item |
Parameters |
| Product specification | P10 |
| Pixel Pitch | 10mm*10mm(x*y) |
| Pixel | 10000points/m2 |
| LED specification | SMD 2121(light druve in one) |
| Pixel composition | 1R1G1B |
| Module Size | 1000mm*240mm |
| Module Resolution | 1000*100/m2 |
| Permeability | ≥90% |
| Box wiring mode | Internal wiring(clean back) |
| Weight | ≤3KG/m2 |
| Peak power consumption | 600W/m2 |
| Average power consumption | About 200W/m2(depending on the video source) |
| Refresh frequency | ≥3840Hz |
| Grayscale level | 16Bit |
| Brightness control level | Grade 0-255 |
| Color temperature | 3200K-8500K(adjustable) |
| Frame change frequency | ≥60Hz |
| Viewing angle | H:140°;V:140° |
| Input signal | DVI VGA, composite video |
| Control screen mode | Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive control screen) |
| Protection grade | IP30 |
| Power supply requirements | AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V) |
Product details

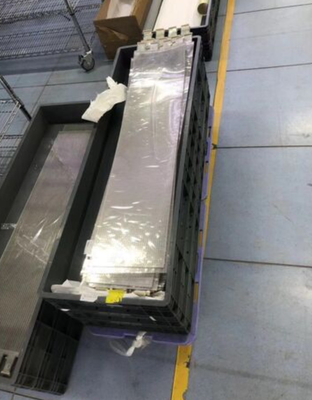

Package Images
