Flexible Indoor Full Color LED Display Rental Screen 62,500 Pixel/M2
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD 3 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Supply Ability: | 3000 Sq.m / month |
|
Detail Information |
|||
| Product Name: | Indoor Full Color LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Density: | 62,500 Pixel/m2 | Feature: | Flexible |
| Brightness: | 1000cd/㎡ | Application: | Rental |
| Highlight: | indoor advertising led display,indoor full color led display screen |
||
Product Description
Flexible Indoor Full Color LED Display Rental Screen 62,500 Pixel/M2
Indoor Full Color LED Display Description:
1. P4 Indoor Full Color LED Display provide personalized solution according to actual request of customer;
2. Wide viewing angle: 140 degree both at horizontal and vertical line, no picture change, no color excursion;
3. Powerful image processing functions, RGB three color brightness, contrast, Gamma curve, each parameter adjustable;
4. Adopt reliable aluminum cabinet, solve heat dissipation problem of high density board from design.
Indoor Full Color LED Display Specification:
| Product Name | Flexible Indoor Full Color LED Display Rental Screen 62,500 Pixel/M2 | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Indoor Full Color LED Display Applications:
Music Venues and Concerts
Large Offices
Theater and Arts
TV Shows
Car Shows

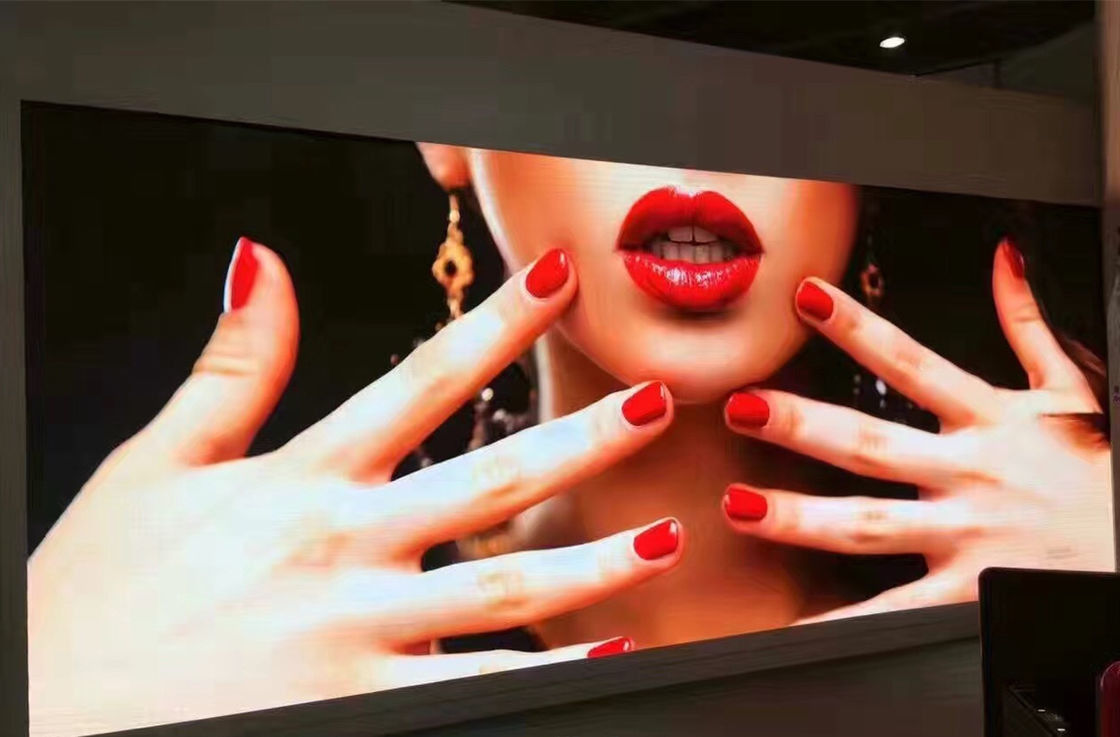

Indoor Full Color LED Display Pictures
Service After-sale:
- Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
- You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
- Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
- Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
- Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
- On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
