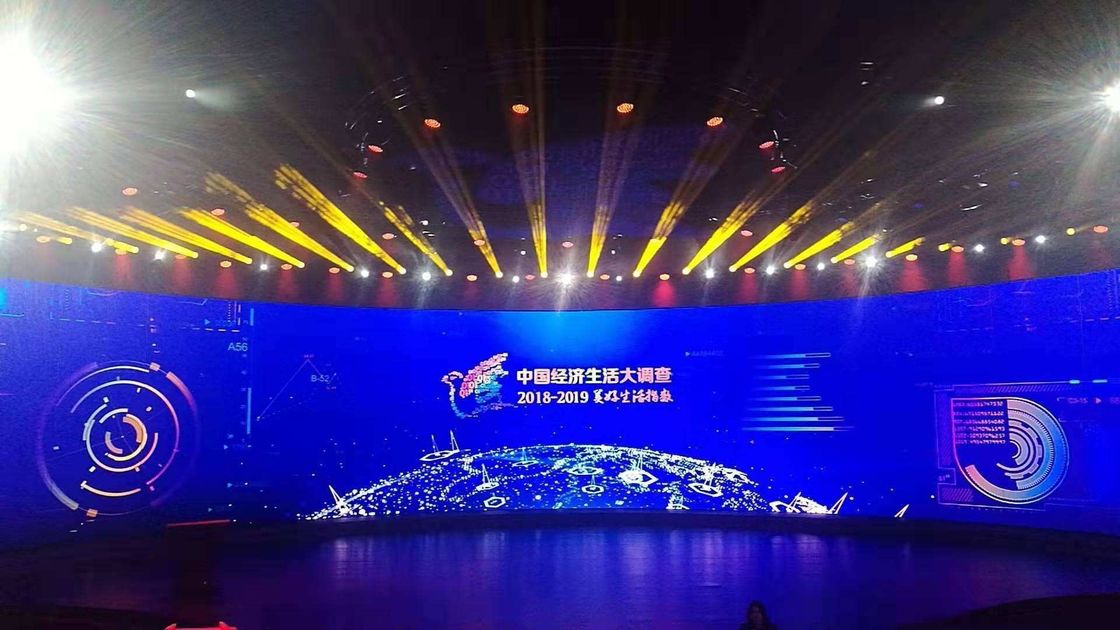

High Resolution Indoor Full Color LED Display P3 Commercial Media Video Walls
Product Details:
| Place of Origin: | China |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-P3-192 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negitionable |
| Packaging Details: | 0.2025 CBM |
| Delivery Time: | 8-15 working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Tube Chip Color: | SMD Full Color | Pixels: | 3mm |
|---|---|---|---|
| Cabinet Size: | 576 X 576mm | Usage: | Indoor |
| Screen Dimension: | Customized | Warranty: | 3 Years |
| Brightness: | 800cd/sqm | Refresh Rate: | 1920Hz-3840Hz |
| Application: | Indoor | Life Span: | 100000hours |
| Cabinet Metarial: | Aluminum | ||
| Highlight: | indoor advertising led display,indoor full color led display screen |
||
Product Description
| P3 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 111000pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 576mm×576 | ||||||||||
| 6 | Module Resolution | |||||||||||
| 7 | Cabinet Resolution | |||||||||||
| 8 | Driving Method | |||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 800cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜800W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.25kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
