2.5mm Pixel Pitch Indoor LED Display High Definition Full Color High Brightness
Product Details:
| Place of Origin: | shenzhen |
| Brand Name: | Vegoo |
| Certification: | RoHS,FCC,CCC,CE |
| Model Number: | VG-DH-P2.5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case/Flight case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 square meter /Month |
|
Detail Information |
|||
| Refresh Rate: | >1920Hz | Color Temperature: | 2000K—9500K |
|---|---|---|---|
| Moduel Size(L×W)mm: | 160mm×160mm | Cabinet Size(L×W×H)mm: | 480mm×480mm×90mm |
| Density: | 160,000 Pixel/m2 | Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp |
| Highlight: | indoor advertising led display,indoor full color led display screen |
||
Product Description
HD P2.5 Indoor LED Full Color LED Video Wall/LED Screen
Features:
- SMD LED encapsulation confirm wide view angle, above 160° for horizontal and vertical, without no strobe and color casting from different angle,good vision effect;
- Cabinet with fast locks and aviation plugs for connecting easily with each other, suit for fixed or hung install,easy to install and dismantl
- The most economical and rational solution for 3 in 1 full color technology;
- for lamp beads regardless of transportation or work condition high contrast good display effect, great color uniformity;
- SMD LED encapsulation confirm wide view angle, above 140° for horizontal and vertical, without no strobe and color casting from different angle,good vision effect;
- Mask protection with good reliability inmunity form damage
| Shenzhen WeiGu Electronic Technology Co.,Ltd. | ||||||||||||
| P2.5 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 2.5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 160,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 160mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 480mm×480mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 192×192 | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5124/ICN2153/FM6353 | ||||||||||
| 10 | Brightness | 600cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜900W | ||||||||||
| 14 | Average power: ＜270W | |||||||||||
| 15 | Cabinet Weight | 4.2kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | IP 45 | ||||||||||
Our Service:
1). Your inquiries related to our products or prices will be replied in 24hrs.
2). Protection of your sales area, ideas of design and all your private information.
3). We can customize it according to your requirements
4). Well-trained and experienced staffs to answer all your inquiry in fluent English.
5). Technology training
6) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
7) We will send our engineers to your country if necessary.

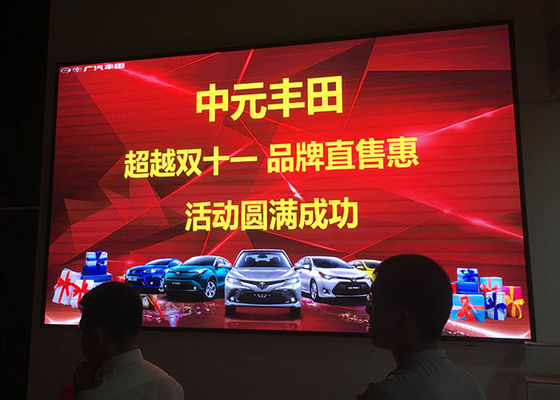

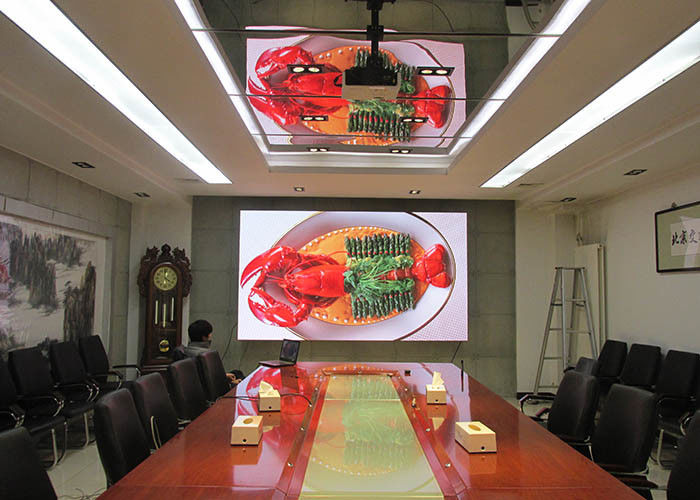

Installation cases:
Service:
1). Your inquiries related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your inquiry in fluent English.
3). Customized design is available,
4). Protection of your sales area, ideas of design and all your private information.
5). Technology training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country if necessary.
Want to Know more details about this product
