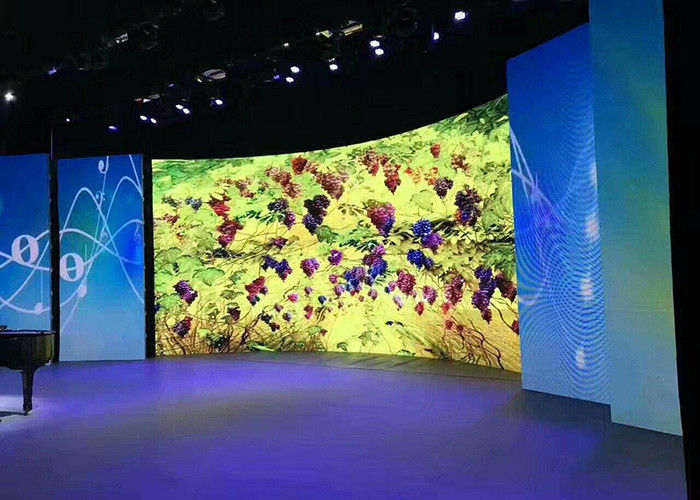

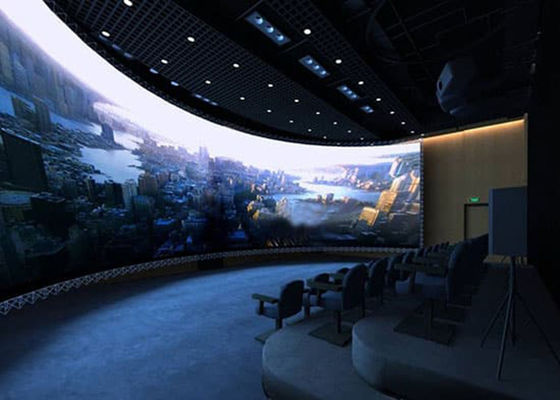

High Resolution 600*337.5*38mm P1.875 Indoor LED Video Screens
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC CCC |
| Model Number: | VG-SUN88848 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case,plywood case,carton |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 1.875mm | Cabinet Resolutio: | 320×180 |
|---|---|---|---|
| Driving Method: | 1/45 Scan | Module Size: | 150mm×168.75mm×10mm |
| Cabinet Size: | 600mm×337.5mm×38mm | Density: | 284,444 Pixel/m2 |
| Highlight: | P1.875 adj video panel,600*337.5*38mm led advertising panels |
||
Product Description
Low Consumption Indoor LED Video Screens P1.875 High Resolution 600*337.5*38mm Cabinet
Product advantages
1.Ultra wide viewing angle.
2. Low reflective
3. High contrast
4.Die-casting aluminium cabinet
5.Easy installation
P1.875 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 1.875mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| Density | 284,444 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 150mm×168.75mm×10mm | ||||||||||
| Cabinet Size(L×W×H)mm | 600mm×337.5mm×38mm | ||||||||||
| Module Resolution | 80×90 | ||||||||||
| Cabinet Resolution | 320×180 | ||||||||||
| Driving Method | 1/45 Scan | ||||||||||
| Driving IC | MBI5153/ICN2153/FM6353 | ||||||||||
| Brightness | 600cd/㎡ | ||||||||||
| Contrast | 4000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜800W | ||||||||||
| Average power: ＜300W | |||||||||||
| Cabinet Weight | 5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >3840Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-240V /5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
1.The Selection of led
Red,Green and Blue light emitting diode (LED) lamps should be the same grade, height and wavelength on the same display
The height or Red ,Green and Blue light from light emitting diode(LED ) lamps at the proportion of R:G:B=3:6:1
The chips were imported from Optotech Cree/ Nichia are adopted;
Adopted automation solid crystal,light split,bonding wire,bagging;
2. Reliability Test
In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc.
The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package it
The reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .
The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65
The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions
Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .
The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects
3. Quality Management
Implement 5 s site management, general SPC statistical process control methods
Through the ISO9001, CE, ROHS, FCC certification
Perfect quality, IQC, IPQC, OQC, LQC, QA engineering, QE engineering and supplier management
