Indoor Fixed Installation LED Video Wall display P2/P3 LED Indoor advertising display panels LED display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-P2-DH2 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Sqm/month |
|
Detail Information |
|||
| Color: | Full Color | Resolution: | 1920(H)*1080(V) |
|---|---|---|---|
| Certificate: | CE | Application: | Advertising Outdoor Indoor |
| Highlight: | P3 Indoor LED Display,P2 Indoor LED Display |
||
Product Description
| Model number | P2,P3 |
| Pixch pitch | 2mm,3mm |
| Pixel Density(dots/m2) | 62500 |
| Pixel Configuration | SMD2121 3 IN1 |

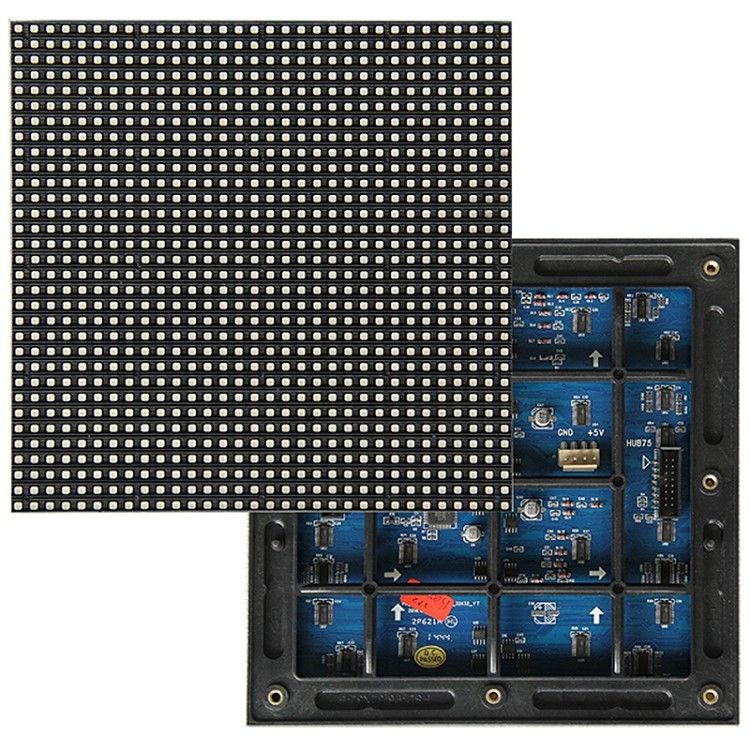

| Module size (mm) | 256*128 |
| Module resolution (dots) | 64*32 |
| Cabinet size (mm) | 512*512 |
| Scanning method | 1/8 |
| Brightness (cd/m2) | 6000 |
| Min. viewing distance | ≥3 |
| Viewing angle ( 50% brightness ) | ≤150° |
| Screen fresh rate | LED screen refresh frame freauency recommended is no less than 1200HZ(recommended) |
| Average Power Consumption(w/m2) | 700 |
| IP grade ( Waterproof Grade ) | IP65 |
| Screen thickness | 8cm |
| Control system | LINSN , Nova ,HD , XIXUN..... |
| Input Voltage | AC220 V/50HZ or AC 110V/60HZ |
| Gray Scale | Recommended 14bit |
| Printed Circuit Board(PCB) | 4 Layer |
| Color Temperature | The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
| Color | 64g color(on the condition of 4096 gray scale) |
| Effective Communication Distance(without relay) | Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
| Cabinet | Die casting aluminum cabinet |
| Cabinet weight | 8KG/PCS |
| Warranty | 1 years |
FAQ:
1:What is the warranty of your led display?
A:We offer 12 months warranty. and more than 100000 hours screen life span
2:what is your payment term? How long it takes to delivery?
A:We usually accept the T/T or L/C. both of them will at least 30% deposit in advance, and the rest of 70% will paid before delivery. The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shipment , all the screens have aging test. and then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service, we have professional sales team and technical team, who are willing to answer your question within 24 hours.
